Trader Clouded Leopard Series Switch Plates
Clouded Leopard - Stylish, Subtle, Refined Blends In With Today’s Modern Decor.
Clouded Leopard Is A Slim Option With A Matt Finish. Clouded Leopard Has A Full Range Of Switches & Sockets With The Added Option Of Push Button Switches.
- Switches Are Rated 16ax/20a 250v~ And Approved To As/Nzs60669-1
- Fits Standard Australian Wall Boxes And Mounting Accessories That Use 84mm Mounting Centres

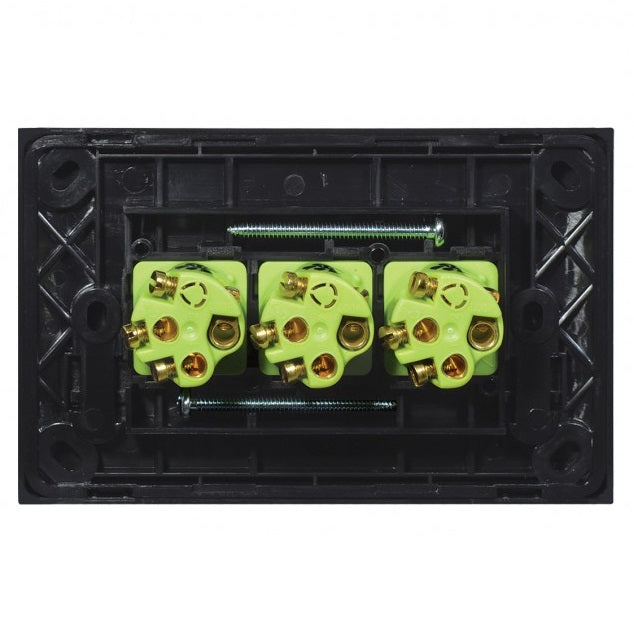

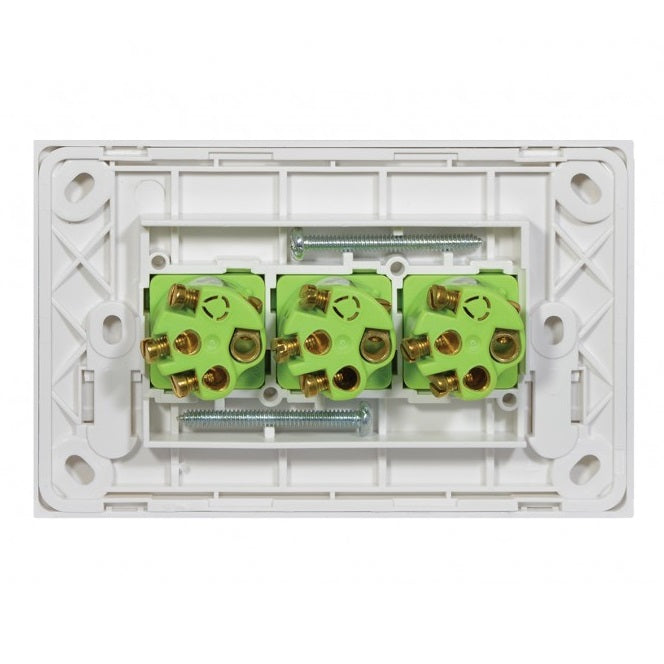

- Uses Brass Tunnel Terminals That Have The Screws Backed Out For Easier Installation Of Cabling. Switches Are Two Way With Looping Terminal And Suit 4 X 1.5mm2 Cabling With 4.1mm Bore.
- Slotted Head Screws For The Terminals
- Uses ‘Cat Flap’ Screw Covers For Ip Rating Or Mounting Screws
- Plates Suit Trader Meerkat MESWC Mechs, Including TV And Data; And Clipsal 30 Style Mechs And Accessories

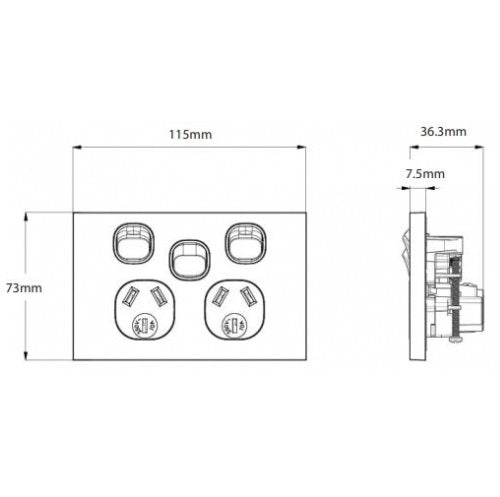

- Typical Example Of Size In Diagram

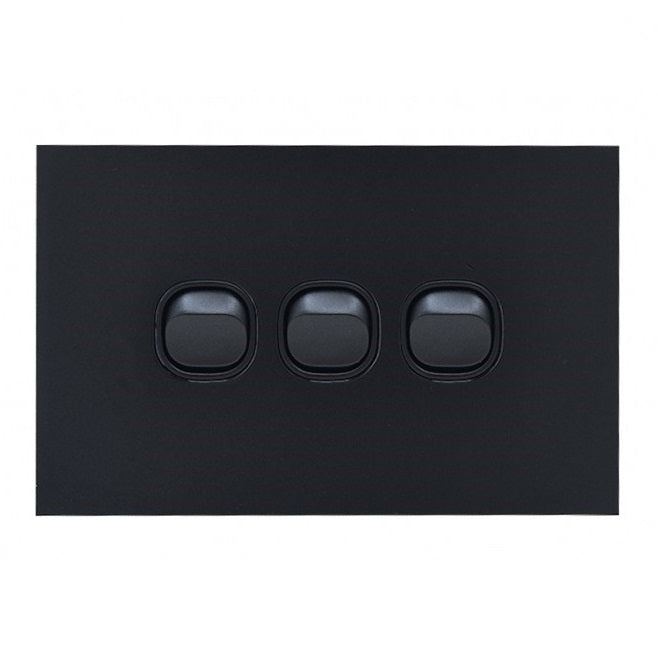

CLSW3G** - 3 Gang Complete Horizontal Switch
If You Are Unsure What To Order, Then We Are Happy To Help. Please Call Us During Business Hours.
