Clipsal Solis T Horizontal Double Powerpoint With USBC Platinum

$186.01

The Clipsal Solis™ Collection brings your projects to the next level with its blend of modern minimalism and advanced features. Perfect for high-end builds, this range redefines luxury and performance.

The T Series range is available in four premium finishes: Platinum Aluminium, Ebony Aluminium, Living Brass and White Ceramic. It has a distinctive and robust toggle with an ultra slim cover (3.9mm) for efficient installation.

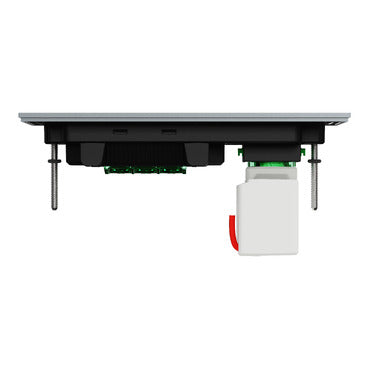

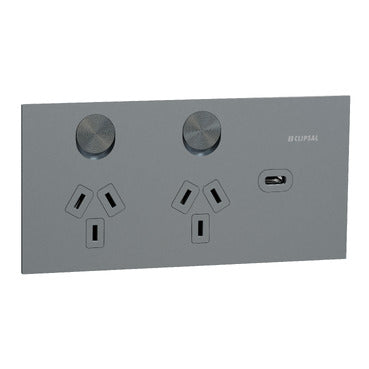

1025USBC-PT Clipsal Solis T Horizontal Double Powerpoint With USBC Platinum

This product requires the use of a special wall bracket. These brackets can be found here.

Unsure which bracket is required? Solis mounting compatibility chart can be found here.

  • Number Of Outlets : 2
  • Device mounting : Wall mounted 65 mm
  • Cover type : With shutter
  • Number of power socket outlets : 2x2P+E, Australian/New Zealand
  • Rated current : 10A 230/240V, AC, 50Hz

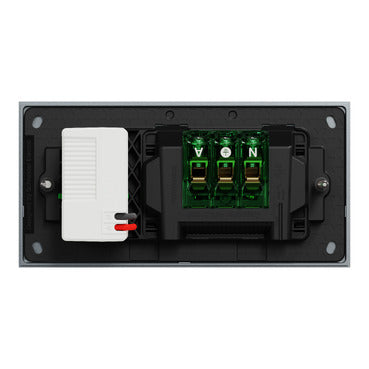

  • Connections - terminals 4x 2.5mm² screw terminals
  • 3x 4mm² screw terminals
  • Colour tint : Platinum
  • Surface finish : Aluminium
  • Surface treatment : Metallic
  • Additional Function : USB type C
  • Material : Brass
  • Screwdriver shape Philips No 2
  • Square drive no 1 (SQ1)
  • Wire stripping length : 16mm
  • Fixing mode : Screw
  • Fixing center : 120mm
  • Height : 74mm
  • Width : 148mm
  • Depth : 68.9mm
  • Installation Type : Flush
  • Installation Orientation : Horizontal
  • Control type : Rocker
  • Cover Thickness : 3.9mm
  • Cut-out dimensions : 130x50mm
  • Number Of Switches : 2

If you are unsure what to order, then we are happy to help. Please call us during business hours.

Clipsal Solis is backed by a 10 year mechanical and a 7 year electronic warranty.

Datasheet

Full Brochure
