Clipsal Solis 3 Gang Switch Zen Black

$87.78

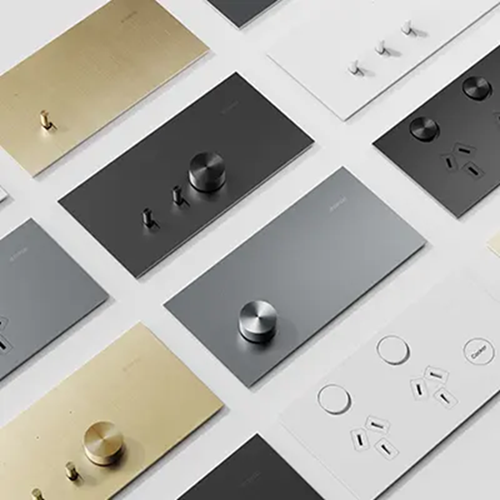

The Clipsal Solis™ Collection brings your projects to the next level with its blend of modern minimalism and advanced features. Perfect for high-end builds, this range redefines luxury and performance.

The optimum range Solis™ is available in two premium finishes: Matte White and Matte Black. It has a flush push-button and ultra slim cover (4.5mm) for easy installation while maintaining aesthetics.

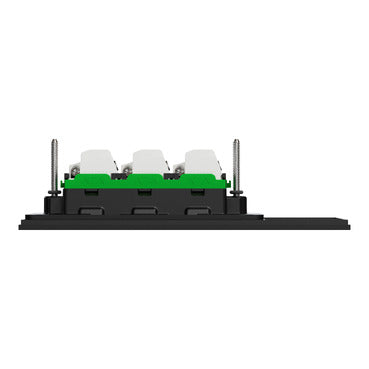

1043PA-ZB Clipsal Solis 3 Gang Complete Switch

This product can be installed into standard wall brackets.

Unsure which bracket is required? Solis mounting compatibility chart can be found here.

  • Number of gangs 3 gangs
  • [Ue] rated operational voltage 230/240 V
  • Network type AC
  • Network frequency 50 Hz
  • Rated current 20 A/16 AX
  • Control type Push-button
  • Connections - terminals Screw terminals
  • Installation Type Flush
  • Number Of Switches 3
  • Material Plastic
  • Installation direction Horizontal
  • Surface treatment Painted
  • Load type LEDi lamp 0...250 W 20 A/16 AX
  • Terminals Capacity 4 x 1.5...3 x 2.5 mm²
  • Screwdriver shape Philips No 2
  • Square drive no 1 (SQ1)
  • Wire stripping length 10 mm
  • Mounting Type Screw
  • Cover Thickness 4.5 mm
  • Mounting centres 84 mm
  • Cut-out dimensions 93 x 50 mm
  • Product certifications RCM
  • Surface finish Matt
  • Height 74 mm
  • Width 148 mm
  • Depth 45.5 mm
  • Embedding depth 41 mm
  • Motor M-rating AS3133 M80
  • Switch function 1-pole 1/2-way

If you are unsure what to order, then we are happy to help. Please call us during business hours.

Clipsal Solis is backed by a 10 year mechanical and a 7 year electronic warranty.
