Clipsal Wiser Connected Switch, Zigbee Default Mode, ControlLink

$167.51

Clipsal 40 series mechanisms are suitable for a variety of Clipsal grid and plate assemblies.

Of our ranges, these include Clipsal Iconic and Clipsal Solis. Please note that not all mechanisms will suit the Solis range.

The Wiser push button connected smart switch 10 AX is suitable for hard-wired multiway switching. It can be controlled through ControlLink, the push button on the wall, remotely using the Wiser by SE app or voice command. With default Zigbee mode it can connect to the Wiser hub for full smart home automation control and functions.

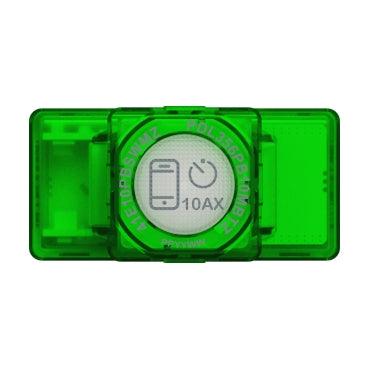

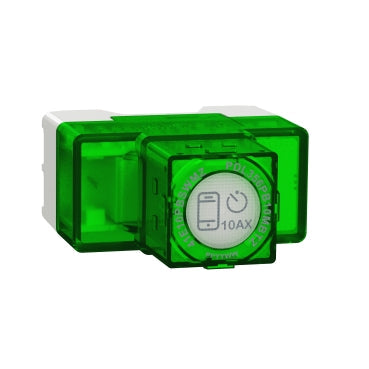

41E10PBSWMZ-VW Clipsal Wiser Connected Switch, Zigbee Default Mode, Control Link

  • Device presentation Mechanism
  • Technology type Electronic
  • Number of rocker 1
  • Actuator Push-button
  • Load type Dimmable LED lighting driver: 10 A
  • LED lighting driver (non-dimmable): 10 A
  • Electronic transformer: 10 A
  • Medium voltage halogen lamp: 10 A
  • Linear fluorescent ballast: 10 A
  • Inductive: 6 A (cos phi =0.6)
  • Resistive: 15 A
  • Motor: 10 A
  • [Ue] rated operational voltage 220...240 V AC 50 Hz
  • Protection type Over temperature protection
  • Thermal protection
  • Colour tint Vivid white (VW)
  • Surface finish Glossy
  • Local signalling LED
  • Control type Push-button
  • By mobile application
  • Multi-way control via ControlLink
  • Software name Wiser App
  • Maximum number of connected devices 3 (switch)
  • 2 (ControlLink module)
  • Cable length 50 m for ControlLink module
  • Technology type Zigbee default
  • Bluetooth low energy
  • Communication network type Wireless (2.4 GHz), 2.5 mW at < 50 m
  • Memory description Backup memory - date and time for 6 h
  • Backup memory - program for indefinite period

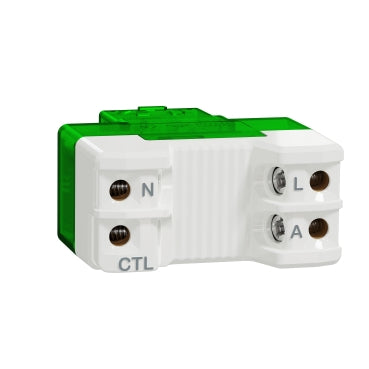

  • Wiring configuration 3-wire
  • Material Plastic
  • Mounting support Grid
  • Device mounting Flush
  • Fixing mode Clip-in

This mechanism needs to be installed into a compatible grid and plate assemblyThis 40 Series mechanism is only is only suitable for a variety of Clipsal grid and plate assemblies and will not fit into other ranges or brands.

If you are unsure what to order, then we are happy to help. Please call us during business hours.

Datasheet
