Clipsal Wiser Connected Switch, Zigbee Default Mode

$105.53

Clipsal 40 series mechanisms are suitable for a variety of Clipsal grid and plate assemblies.

Of our ranges, these include Clipsal Iconic and Clipsal Solis. Please note that not all mechanisms will suit the Solis range.

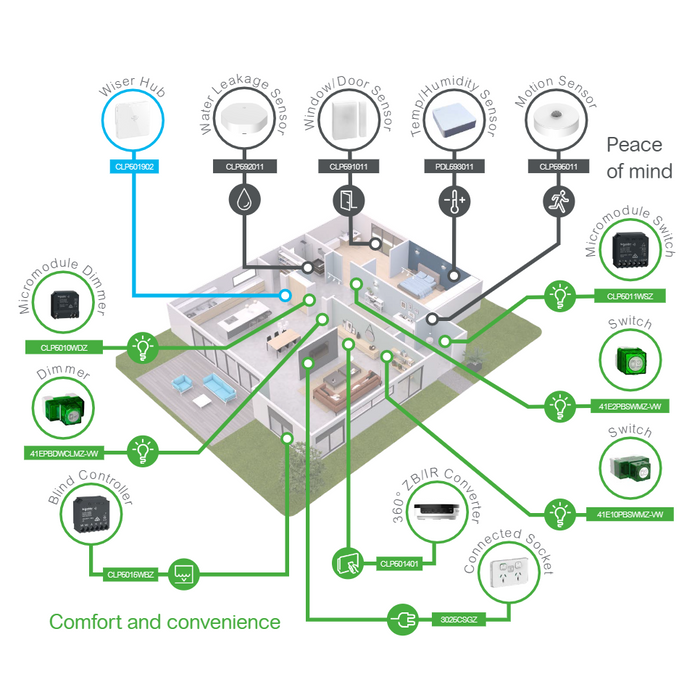

The Clipsal push button wiser connected switch 2 AX offers flexible installation options and is ideal for controlling lighting and exhaust fans. It can be controlled through the push button on the wall, remotely using the wiser by SE APP or voice command. With default ZigBee mode it can connect to the wiser hub for full home control and automation functions.

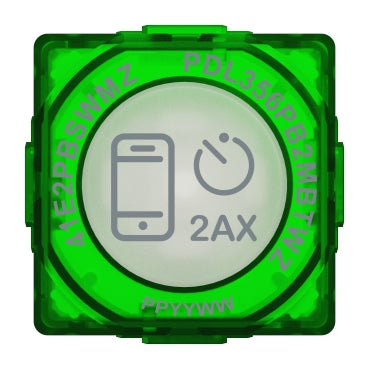

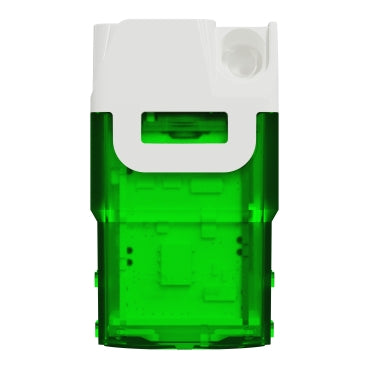

41E2PBSWMZ-VW Clipsal Wiser Connected Switch, Zigbee Default Mode

  • Device presentation Mechanism
  • Technology type Electronic
  • Number of rocker 1
  • Actuator Push-button
  • Load type Dimmable LED lighting driver: 2 A
  • LED lighting driver (non-dimmable): 2 A
  • Electronic transformer: 2 A
  • Medium voltage halogen lamp: 2 A
  • Linear fluorescent ballast: 2 A
  • Inductive: 2 A (cos phi =0.6)
  • Resistive: 2 A
  • Motor: 2 A
  • [Ue] rated operational voltage 220...240 V AC 50 Hz
  • Protection type Over temperature protection
  • Thermal protection
  • Colour tint Vivid white (VW)
  • Surface finish Glossy
  • Local signalling LED
  • Control type Push-button
  • By mobile application
  • Software name Wiser App
  • Technology type Zigbee default
  • Bluetooth low energy
  • Communication network type Wireless (2.4 GHz), 2.5 mW at < 50 m
  • Wiring configuration 3-wire
  • Material Plastic
  • Mounting support Grid
  • Device mounting Flush
  • Fixing mode Clip-in
  • Fixing center 84 mm
  • Type of installation Indoor installation
  • Embedding depth 40 mm
  • Depth 56 mm

This mechanism needs to be installed into a compatible grid and plate assemblyThis 40 Series mechanism is only is only suitable for a variety of Clipsal grid and plate assemblies and will not fit into other ranges or brands.

If you are unsure what to order, then we are happy to help. Please call us during business hours.

Datasheet
