Clipsal 40 series mechanisms are suitable for a variety of Clipsal grid and plate assemblies.
Of our ranges, these include Clipsal Iconic and Clipsal Solis. Please note that not all mechanisms will suit the Solis range.

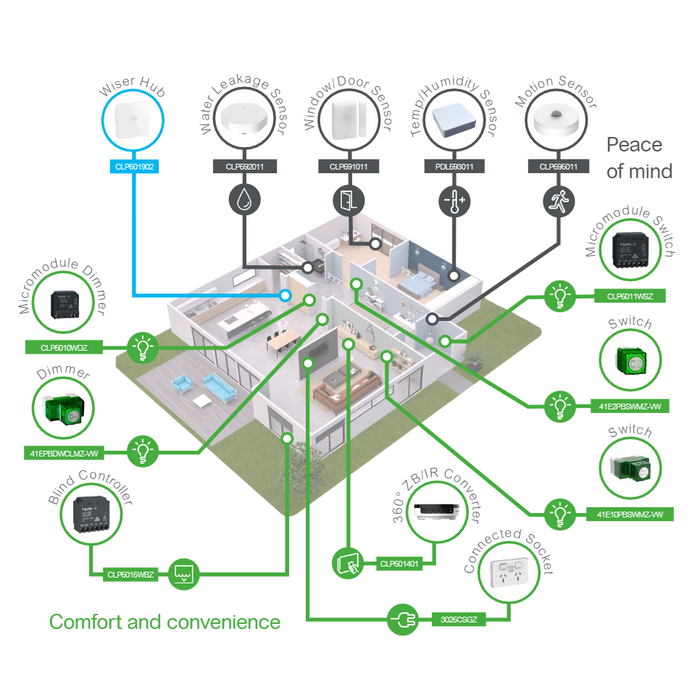

This connected dimmer is suitable for hard-wired multiway dimming. It can be controlled through control link, the push button on the wall, remotely using the wiser by SE APP or voice command. With default ZigBee mode it can connect to the wiser hub for full home control and automation functions.

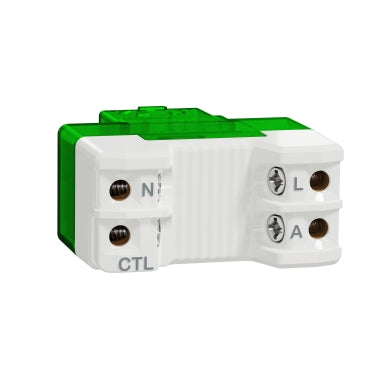

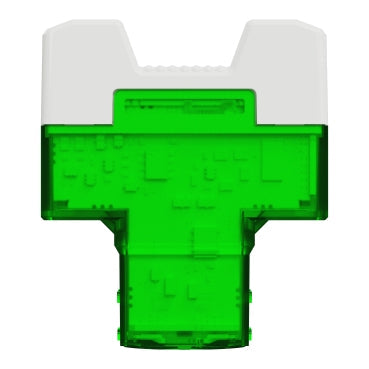

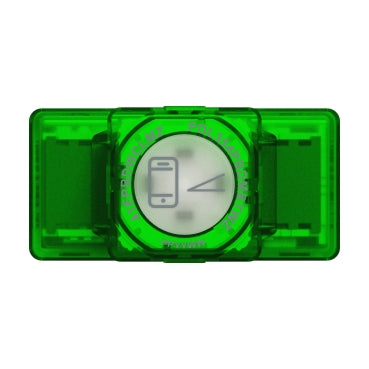

41EPBDWCLMZ-VW Clipsal Iconic Wiser Connected Dimmer, Zigbee Default Mode
- Concentrator compatibility Wiser hub generation 1
- Mobile App name Wiser by SE
- Device presentation Mechanism
- Device application Light control
- Device mounting Flush
- Fixing mode Clip-in
- Dimmer type Universal
- Load type Dimmable LED: 0...150 W
- Compact fluorescent lamp: 0...300 W
- Incandescent lamp: 0...300 W at 240 V
- Halogen lamp: 0...300 W at 240 V
- LV halogen lamps: 0...300 W (electronic transformer)
- [Ue] rated operational voltage 220...240 V AC 50 Hz
- Protection type Overheating protection
- Short-circuit protection
- Overcurrent protection
- Colour tint Vivid white (VW)
- Surface finish Glossy
- Local signalling LED
- Control type Push-button
- By mobile application
- Multi-way control via ControlLink
- Number of ways 5 ways
- Software name Wiser by SE App
- Maximum number of connected devices 3 (dimmer)
- 2 (ControlLink module)
- Cable length 50 m for ControlLink module
- Technology type Zigbee default
- Bluetooth low energy
- Communication network type Wireless Zigbee (2.4 GHz), 2.5 mW at < 50 m
- Memory description Backup memory - date and time for 6 h
- Backup memory - program for indefinite period
- Wiring configuration 3-wire

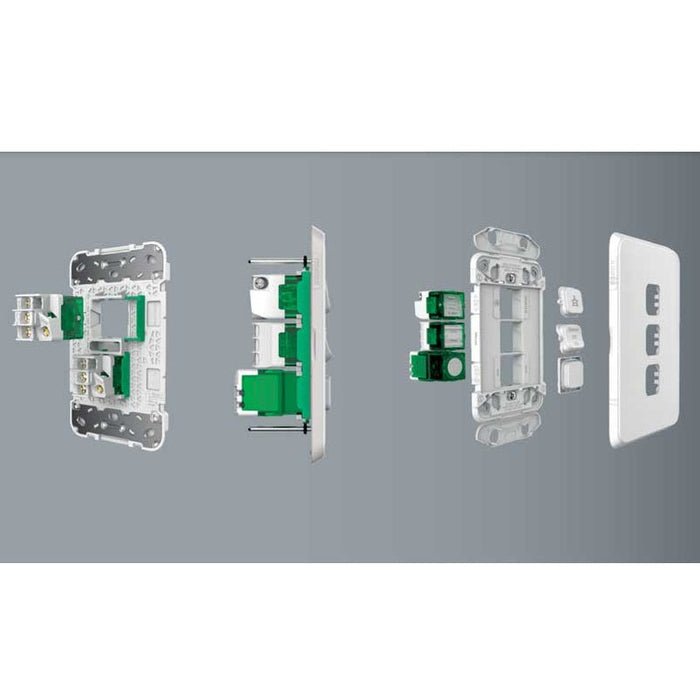

The dimmer mechanism needs to be installed into a compatible grid and plate assembly. This 40 Series mechanism is only is only suitable for a variety of Clipsal grid and plate assemblies and will not fit into other ranges or brands.
If you are unsure what to order, then we are happy to help. Please call us during business hours.
