Clipsal Iconic Connected AC Fan Controller

$138.20

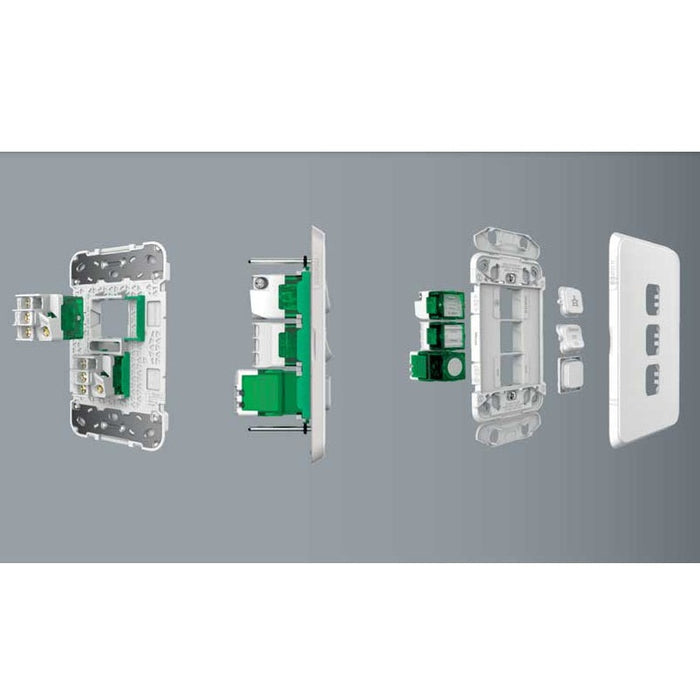

The Iconic Connected AC ceiling fan controller provides added comfort and convenience by making any 3 speed 240V ceiling fan part of a Wiser smart home. With Zigbee default mode, control from the Wiser by SE app, wall switch, or voice command and set timers, schedules or integrate into Wiser moments and automations. The modular mechanism design provides installation flexibility and simple upgrade options for Iconic wall plates. Also suitable for Solis 40PWSA and 40TWSA

  • Device presentation Mechanism
  • Technology type Electronic
  • Number of rocker 1
  • Actuator Push-button
  • Load type 230 V AC fan: 150 W
  • [Ue] rated operational voltage 220...240 V AC 50 Hz
  • Fuse type 220...240 V 50 Hz
  • Protection type Over temperature protection
  • Thermal protection
  • Colour tint Vivid white (VW)
  • Number of modules 1 module
  • Local signalling Fan speed: 1 LED (amber/green/red)
  • Signalling function Fan speed
  • Control type OFF-LOW-MEDIUM-HIGH fan speed controller fan speed control
  • By mobile application
  • Software name Wiser by SE App: fan control
  • Maximum number of connected devices 3 (switch)
  • Technology type Zigbee default
  • Bluetooth low energy
  • Communication network type Wireless (2.4 GHz), 2.5 mW at < 50 m
  • Memory description Backup memory - date and time for 6 h
  • Backup memory - program for indefinite period
  • Material Plastic
  • Mounting support Grid
  • Device mounting Flush
  • Fixing mode Clip-in
  • Fixing center 84 mm
  • Type of installation Indoor installation
  • Embedding depth 53 mm
  • Depth 58 mm
  • Width 48 mm
  • Height 22 mm
